תיאור

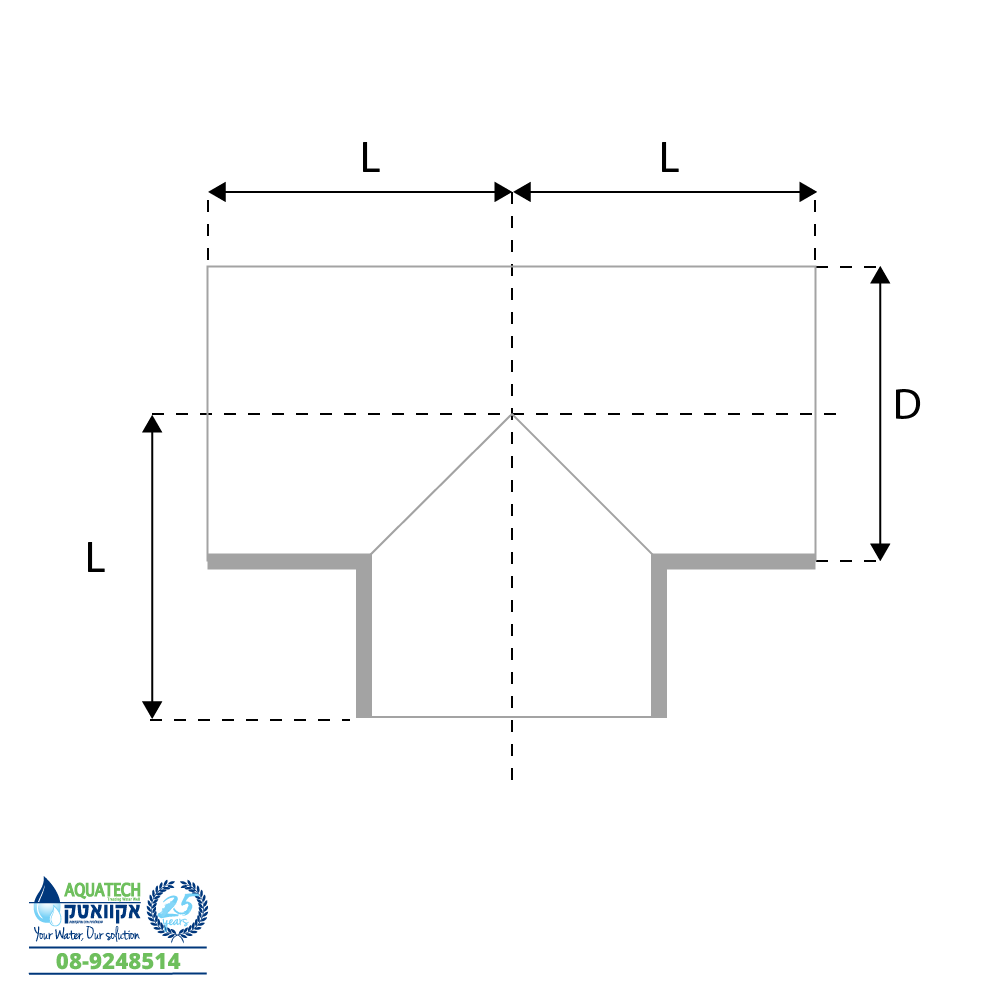

Size | L | D | T | 304 | 316 |
1/2” | 38 | 12.7 | 1.65 | 1011035-0.5-304 | 1011035-0.5 |
3/4″ | 28.6 | 19 | 1.65 | 1011035-0.75-304 | 1011035-0.75 |
1” | 28.6 | 25.4 | 1.65 | 1011035-1-304 | 1011035-1 |
1 1/4″ | 35 | 31.8 | 1.65 | 1011035-1.25-304 | 1011035-1.25 |
1 1/2” | 42 | 38.1 | 1.65 | 1011035-1.5-304 | 1011035-1.5 |
2” | 52.3 | 50.8 | 1.65 | 1011035-2-304 | 1011035-2 |
2 1/2” | 59.5 | 63.5 | 1.65 | 1011035-2.5-304 | 1011035-2.5 |
3” | 65.9 | 76.2 | 1.65 | 1011035-3-304 | 1011035-3 |
4” | 67.3 | 101.6 | 2.1 | 1011035-4-304 | 1011035-4 |
6” | 127 | 152.4 | 2.8 | 1011035-6-304 | 1011035-6 |
