תיאור

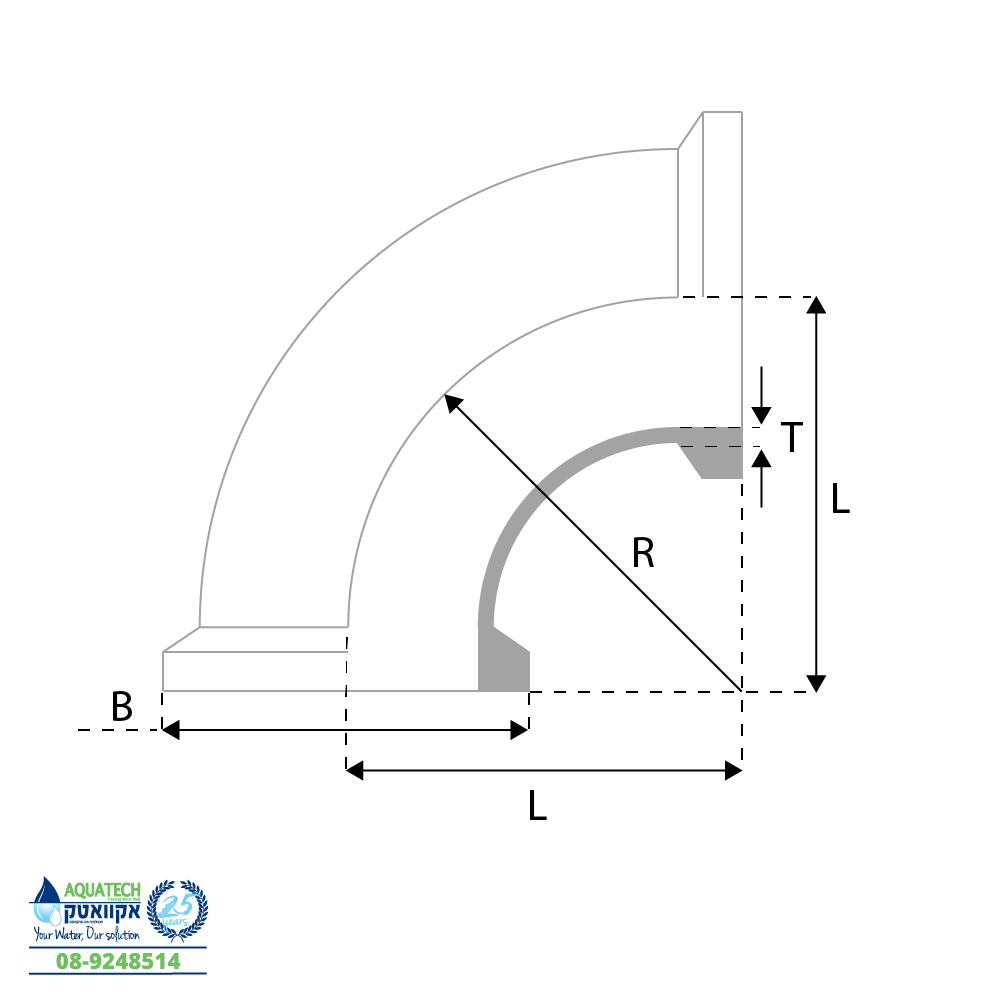

| Size | L | R | D | T | 304 | 316 |
| 1/2” | 31.8 | 19.1 | 19.1 | 12.7 | 1012030-0.5-304 | 1012030-0.5 |
| 3/4" | 41.3 | 28.6 | 28.6 | 19.1 | 1012030-0.75-304 | 1012030-0.75 |
| 1” | 50.8 | 38.1 | 38.1 | 25.4 | 1012030-1-304 | 1012030-1 |
| 1 1/4" | 60.4 | 47.7 | 47.7 | 31.8 | 1012030-1.25-304 | 1012030-1.25 |
| 1 1/2” | 69.9 | 57.2 | 57.2 | 38.1 | 1012030-1.5-304 | 1012030-1.5 |
| 2” | 88.9 | 76.2 | 76.2 | 50.8 | 1012030-2-304 | 1012030-2 |
| 2 1/2” | 108 | 95.3 | 95.3 | 63.5 | 1012030-2.5-304 | 1012030-2.5 |
| 3” | 127 | 114.3 | 114.3 | 76.2 | 1012030-3-304 | 1012030-3 |
| 4” | 168.2 | 152.4 | 152.4 | 101.6 | 1012030-4-304 | 1012030-4 |
| 6” | 250.8 | 228.6 | 228.6 | 152.4 | 1012030-6-304 | 1012030-6 |
