תיאור

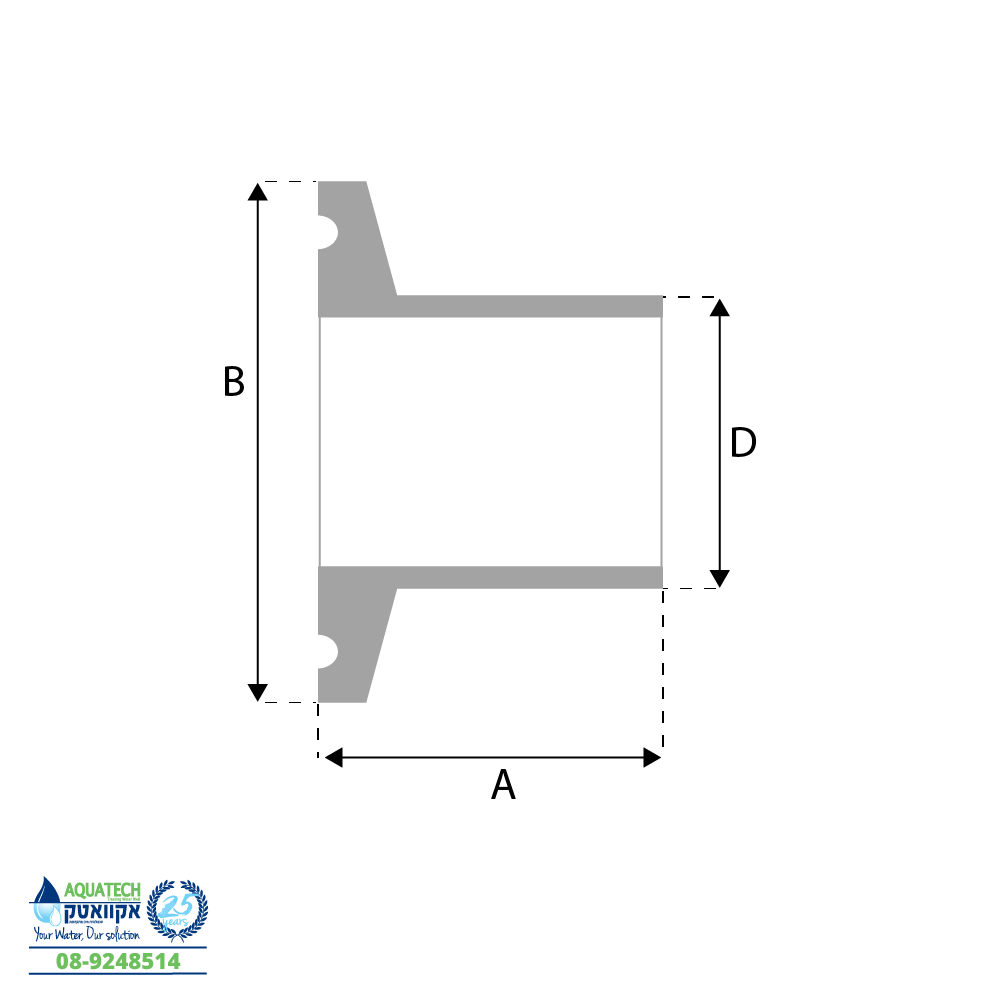

| Size | L | K | D | A | 304 | 316 |
| 14WMP | ||||||
| 1/2” | 12.7 | 25.4 | 12.7 | 9.4 | 1031010-0.5W/304 | 1031010-0.5W |
| 3/4″ | 12.7 | 25.4 | 19.05 | 15.75 | 1031010-0.75W/304 | 1031010-0.75W |
| 1” | 12.7 | 50.5 | 25.4 | 22.2 | 1031010-1W/304 | 1031010-1W |
| 1 1/2” | 12.7 | 50.5 | 38.1 | 34.8 | 1031010-1.5W/304 | 1031010-1.5W |
| 2” | 12.7 | 64 | 50.8 | 47.5 | 1031010-2W/304 | 1031010-2W |
| 2 1/2” | 12.7 | 77.5 | 63.5 | 60.2 | 1031010-2.5W/304 | 1031010-2.5W |
| 3” | 12.7 | 91 | 76.2 | 72.9 | 1031010-3W/304 | 1031010-3W |
| 4” | 15.8 | 119 | 101.8 | 97.38 | 1031010-4W/304 | 1031010-4W |
| 6” | 168.8 | 152.4 | 146.85 | 1031010-6W/304 | 1031010-6W | |
| 8” | 217.7 | 203.2 | 197.66 | 1031010-8W/304 | 1031010-8W | |
| 10” | 268.5 | 254 | 247.2 | 1031010-10W/304 | 1031010-10W | |
| 12” | 319.3 | 304.8 | 298 | 1031010-12W/304 | 1031010-12W |
