תיאור

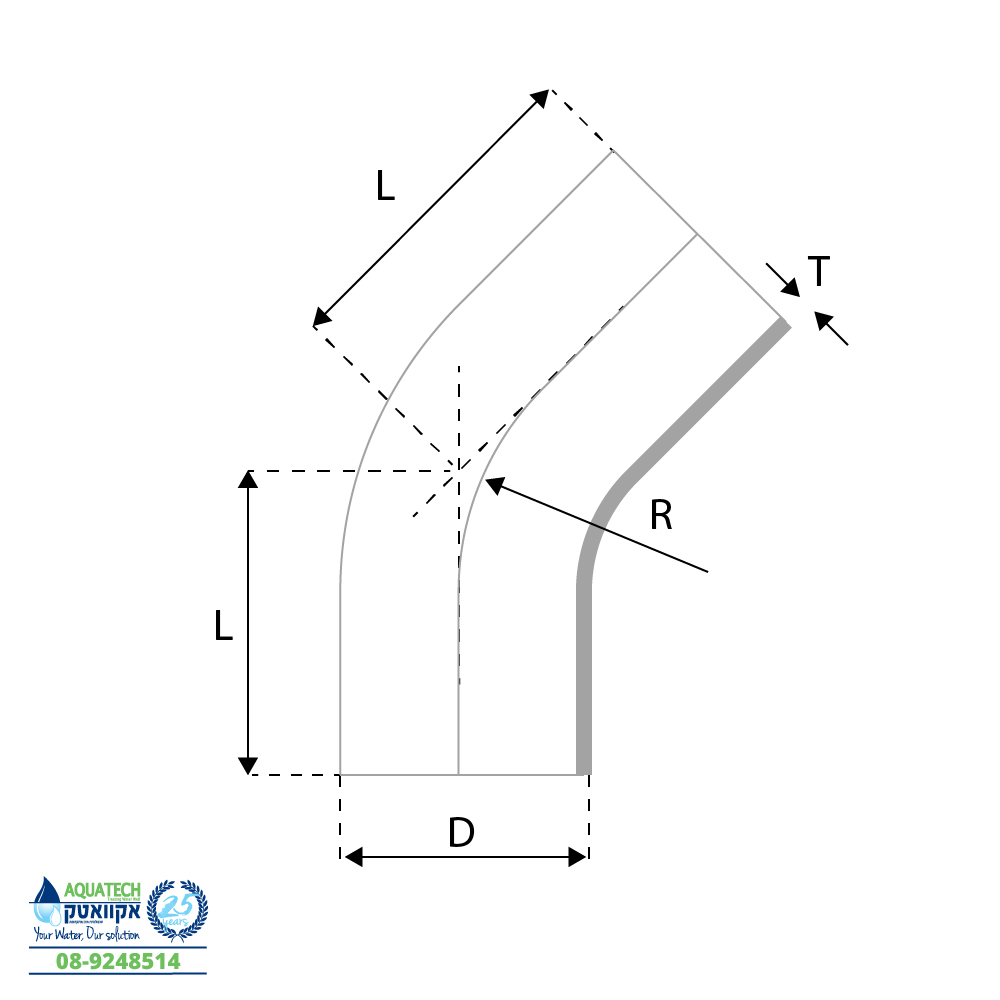

| Size | L | R | D | T | 304 | 316 |
| 1/2” | 30.2 | 19 | 12.7 | 1.65 | 1011032-0.5-304 | 1011032-0.5 |
| 3/4" | 30.2 | 28.58 | 19.5 | 1.65 | 1011032-0.75-304 | 1011032-0.75 |
| 1” | 30.2 | 38.1 | 25.4 | 1.65 | 1011032-1-304 | 1011032-1 |
| 1 1/4" | 41.3 | 47.7 | 31.8 | 1.65 | 1011032-1.25-304 | 1011032-0.25 |
| 1 1/2” | 41.3 | 57.2 | 38.1 | 1.65 | 1011032-1.5-304 | 1011032-1.5 |
| 2” | 58.7 | 76.2 | 50.8 | 1.65 | 1011032-2-304 | 1011032-2 |
| 2 1/2” | 76.2 | 95.3 | 63.5 | 1.65 | 1011032-2.5-304 | 1011032-2.5 |
| 3” | 93.7 | 114.3 | 76.2 | 1.65 | 1011032-3-304 | 1011032-3 |
| 4” | 122.2 | 152.4 | 101.6 | 1.65 | 1011032-4-304 | 1011032-4 |
| 6” | 158.2 | 228.6 | 152.4 | 2.1 | 1011032-6-304 | 1011032-6 |
