תיאור

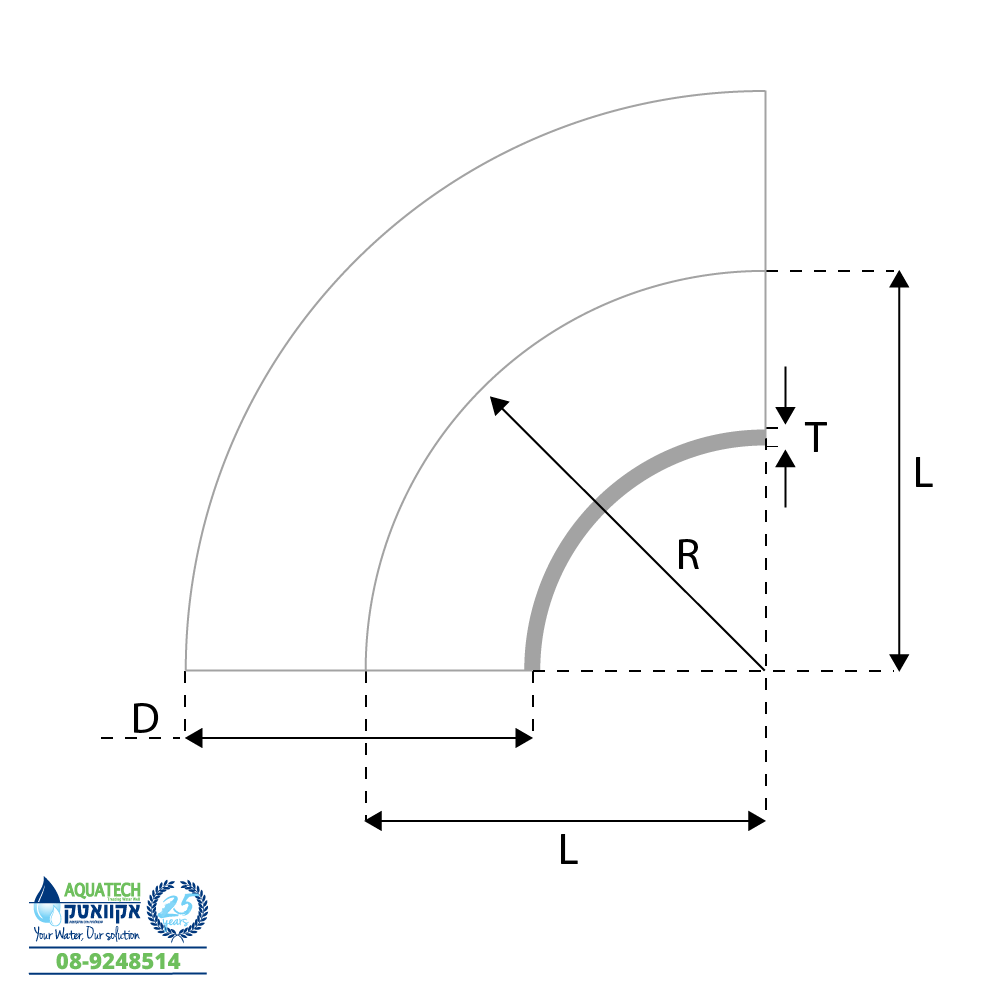

טבלת מידות
| Size | L | R | D | T | 304 | 316 |
| 1/2” | 19.1 | 19.1 | 12.7 | 1.65 | 1011028-0.5-304 | 1011028-0.5 |
| 3/4" | 28.6 | 28.6 | 19.1 | 1.65 | 1011028-0.25-304 | 1011028-0.25 |
| 1” | 38.1 | 38.1 | 25.4 | 1.65 | 1011028-1-304 | 1011028-1 |
| 1 1/4" | 47.7 | 47.7 | 31.8 | 1.65 | 1011028-1.25-304 | 1011028-1.25 |
| 1 1/2” | 57.2 | 57.2 | 38.1 | 1.65 | 1011028-1.5-304 | 1011028-1.5 |
| 2” | 76.2 | 76.2 | 50.8 | 1.65 | 1011028-2-304 | 1011028-2 |
| 2 1/2” | 95.3 | 95.3 | 63.5 | 1.65 | 1011028-2.5-304 | 1011028-2.5 |
| 3” | 114.3 | 114.3 | 76.2 | 1.65 | 1011028-3-304 | 1011028-3 |
| 4” | 152.4 | 152.4 | 101.6 | 2.10 | 1011028-4-304 | 1011028-4 |
| 5” | 190.5 | 190.5 | 127 | 2.10 | 1011028-5-304 | 1011028-5 |
| 6” | 228.6 | 228.6 | 152.4 | 2.80 | 1011028-6-304 | 1011028-6 |
